Encapsulated common mode choke is excellent EMI suppressor. It has small profile, large current, low resistance, high frequency and low loss, common mode filter and toroidal inductor.
brand:
MCTitem no.:
MCT Case Potting 14C Series Common Mode Choke Standard Windingshipping port:
ShanghaiHefei Mycoil Technology Co.,TLD produce and design series common mode chokes, according to the shape is divided into vertical and horizontal installation, according to installation PIN were DIP and surface mount (SMD) type, according to the core of the model, divided into toroidal inductor, skeleton type and other types of inductors.
Quick Details
Part Number: MCT Case Potting14C Series Common Mode Choke |
|
Brand name: MCT |
Type: Choke Inductor |
|
Custom made: Available |
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
Lead time: 25 days after payment |
|
OEM: Available |
Part Information
Product Name: Encapsulated Common Mode Choke Coils Filter Toroidal Inductors
Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

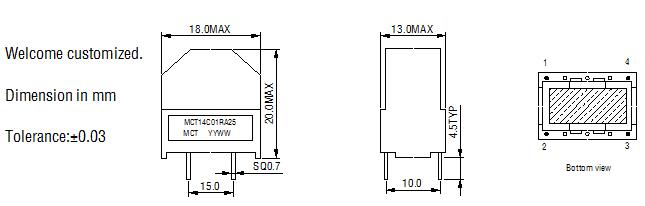

Product Specification
Typical electrical parameter
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
MCT14C033A03 |
33.0 |
2.00 |
0.3 |
MCT14C027A04 |
27.0 |
1.60 |
0.4 |
MCT14C018A05 |
18.0 |
1.10 |
0.5 |
MCT14C010A07 |
10.0 |
0.80 |
0.7 |
MCT14C06RA10 |
6.80 |
0.50 |
1.0 |
MCT14C04RA12 |
4.70 |
0.30 |
1.2 |
MCT14C03RA15 |
3.90 |
0.13 |
1.5 |
MCT14C02RA20 |
2.20 |
0.07 |
2.0 |
MCT14C01RA25 |
1.00 |
0.05 |
2.5 |
We can design for you, if you have any requests, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
