Vertical encapsulated common mode choke has small profile, large current, low resistance, high frequency and low loss, common mode filter and toroidal inductor.It is excellent EMI suppressor.
brand:
MCTitem no.:
MCT Case Potting 18C Series Common Mode Choke Standard Windingshipping port:
ShanghaiHefei Mycoil Technology Co.,TLD is professional common mode chokes manufacturer, our factory is made up of 500 people, huge output can be finished every day. We have a technical team consist of 5 experienced engineers, if you are looking for encapsulated common mode chokes, you can send your specification to us. All materials are environmental protected. We accept custom made and design service.
Quick Details
Part No: MCT Case Potting18C Series Common Mode Choke |
|
Brand name: MCT |
Type: Choke Inductor |
|
Custom made: Available |
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
Lead time: 25 days after payment |
|
OEM: Available |
Part Information
Product Name: Vertical Encapsulated Common Mode Choke Coils with High Frequency
Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

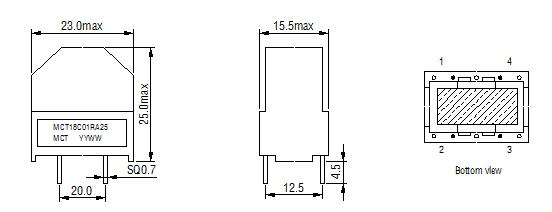

Product Specification
Typical electrical parameter
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
MCT18C033A03 |
33.0 |
1.70 |
0.5 |
MCT18C027A04 |
27.0 |
1.20 |
0.6 |
MCT18C018A05 |
18.0 |
0.60 |
0.8 |
MCT18C012A09 |
12.0 |
0.50 |
0.9 |
MCT18C010A07 |
10.0 |
0.40 |
1.0 |
MCT18C06RA10 |
6.80 |
0.30 |
1.2 |
MCT18C03RA15 |
3.90 |
0.20 |
1.5 |
MCT18C01RA20 |
1.80 |
0.10 |
2.2 |
MCT18C01RA25 |
1.00 |
0.05 |
3.0 |
We can design for you, if you have any requests, please contact us, we will give you fast reply.
