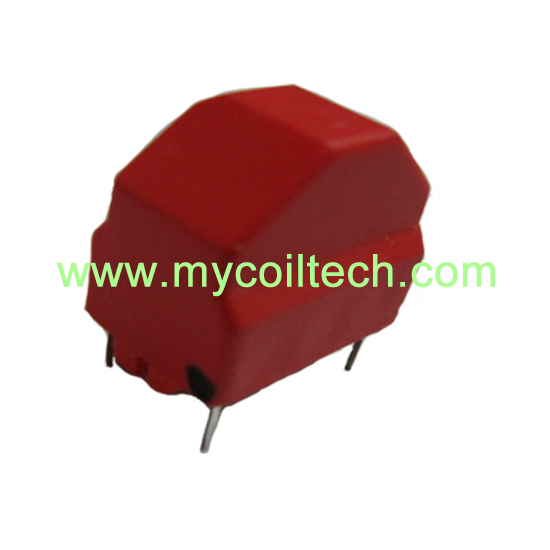

Encapsulated vertical common mode choke mainly for RFI suppression, high frequency EMI suppresionhas. It has small profile, large current, low resistance, high frequency and low loss, common mode filter and toroidal inductor.
brand:
MCTitem no.:
MCT Case Potting 25C Series Common Mode Choke Standard Windingshipping port:
ShanghaiHigh quality encapsulated common chokes from MCT, with RoHS Certification. Our Factory is made up of 500 people, huge output can be finished every day.
Quick Details
|
Part Number: MCT Case Potting25C Series Common Mode Choke |
|
Brand name: MCT |
|
Type: Choke Inductor |
|
Custom made: Available |
|
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
|
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
|
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
|
Lead time: 25 days after payment |
|
OEM: Available |
Part Information
Product Name: Vertical Case Encapsulated Series Common Mode Choke with Standard Winding
Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

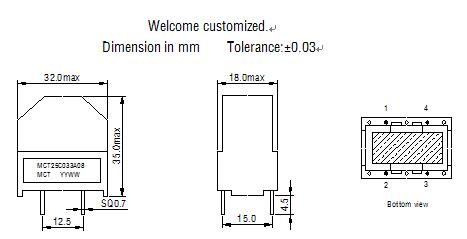

Product Specification
Typical electrical parameter
|
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
|
MCT25C033A08 |
33.0 |
1.00 |
0.8 |
|
MCT25C022A10 |
22.0 |
0.60 |
1.0 |
|
MCT25C015A13 |
15.0 |
0.40 |
1.3 |
|
MCT25C010A16 |
10.0 |
0.27 |
1.6 |
|
MCT25C006A20 |
6.80 |
0.20 |
2.0 |
|
MCT25C004A25 |
4.70 |
0.12 |
2.5 |
|
MCT25C002A35 |
2.20 |
0.06 |
3.5 |
|
MCT25C001A50 |
1.50 |
0.04 |
5.0 |
|
MCT25C001A60 |
1.00 |
0.02 |
6.0 |
We can design for you, if you have any request, please contact us, we will give you fast reply.
