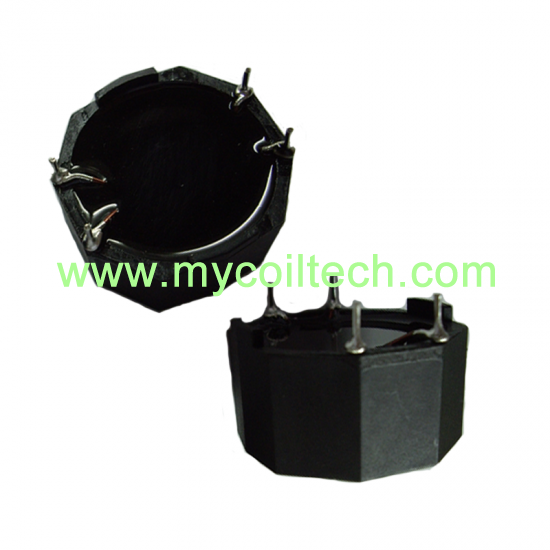

Encapsulated common mode choke coil filters, has high current, low temperature rise, low power consumption. Mainly used in electronic devices EMI radiated noise suppression, PC USB interface cable for PC and peripheral, 1394 lines, DVC, set-top boxes, LCD panels, low-voltage differential signaling (LVDS).
brand:
MCTitem no.:
MCT Case Potting H18C Series Common Mode Choke Standard Windingshipping port:
ShanghaiMCT has over 10 years' manufacturing experience in magnetic components, we can give you very competitive price of encapsulated common mode choke products. We are ISO9001:2008 certification factory, we skilled at designing various inductors, electronic transformers, power relays, magnetic cores, transformer bobbin, etc. All electronic components accept custom design.
Quick Details
|
Part No: MCT Case Potting H18C Series Common Mode Choke |
|
Brand name: MCT |
|
Type: Choke Inductor |
|
Custom made: Available |
|
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
|
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
|
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
|
Lead time: 25 days after payment |
|
OEM: Available |
Part Information
Product Name: High EMI Performance Encapsulated Common Mode Choke Coils
Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Typical electrical parameter
|
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
|
MCTH18C251A08 |
25.0 |
0.60 |
0.8 |
|
MCTH18C151A10 |
15.0 |
0.35 |
1.0 |
|
MCTH18C101A12 |
10.0 |
0.20 |
1.2 |
|
MCTH18C680A15 |
6.80 |
0.15 |
1.5 |
|
MCTH18C390A20 |
3.90 |
0.10 |
2.0 |
|
MCTH18C220A30 |
2.20 |
0.05 |
3.0 |
|
MCTH18C100A40 |
1.00 |
0.03 |
4.0 |
|
MCTH18C060A50 |
0.68 |
0.02 |
5.0 |
Welcome customized , we can design encapsulated common mode choke coils for you.
If you have any requests, please contact us, we will give you fast reply
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
