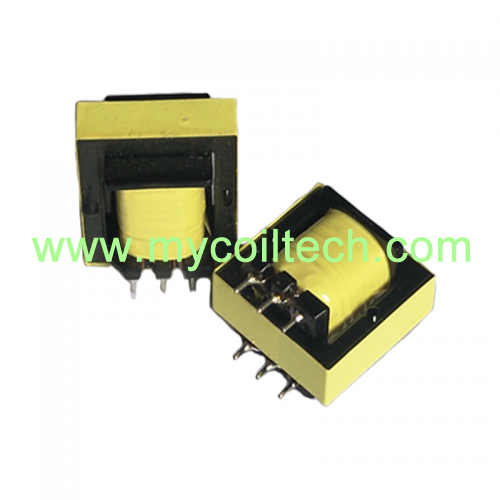

15~35W EF25 High Frequency Flyback Transformer For Led and Power SupplyCustomized EF25 high frequency flyback transformer mainly for electronic products,digital cameras,switch-mode power supplies,led driver applications,various types are available. -

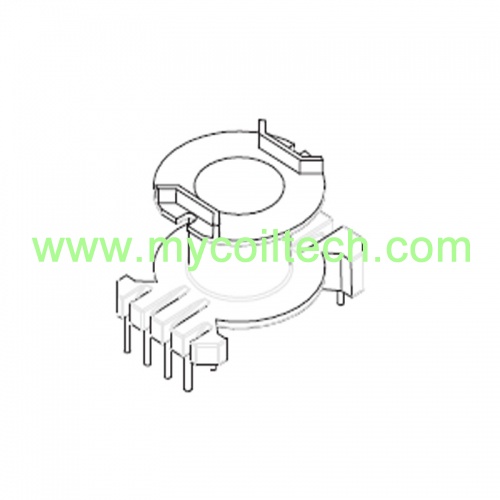

RM6 Vertical Bobbin For Mini LED TransformerRM6 ferrite core transformer. Vertical RM6 L pin bobbin. Bobbin Size=18.5mmX17.1mmX13mm. Pin Pitch=3.81mm Parallel Distance=15.2mm. High quality RM6 bobbin for Pcb transformer. -

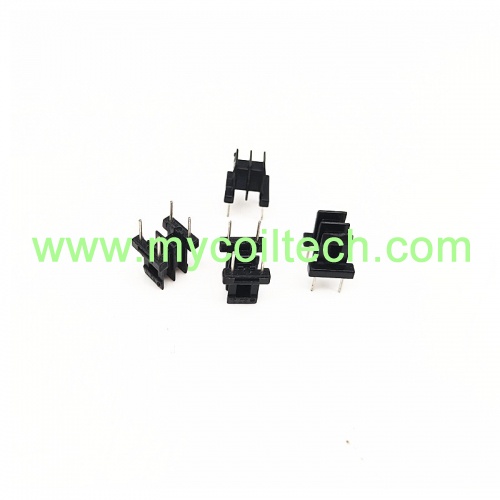

EE8.3 Power Transformer Horizontal Bobbin 2+2 Pins2+2 Pins horizontal EE8.3 bobbin, EE8.3 ferrite core double slots coil former, bobbin size=8.0mmX6.5mmX8.35mm, pin pitch=5mm, parallel Distance=6.8mm, supply EE8.3 high frequency transformers. -

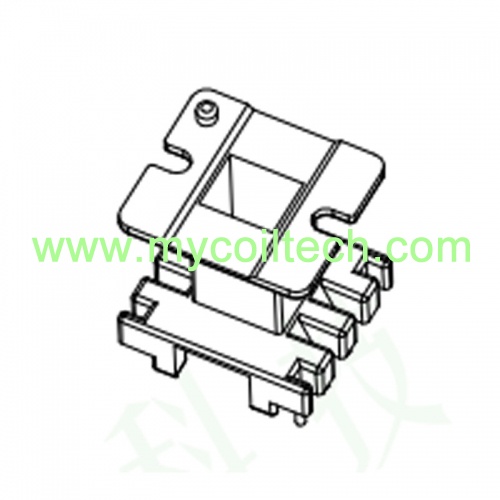

EE8.3 High Frequency Electronic Transformer BobbinCustomized EE8.3 power transformer. EE8.3 horizontal single slot bobbin. Pin Pitch=2.9mm Parallel Distance=6mm. Bobbin Size=9.0mmX8.8mmX8.0mm. 3+3 pins EE8.3 phenolic material bobbin. We make bobbin tooling for customer. -

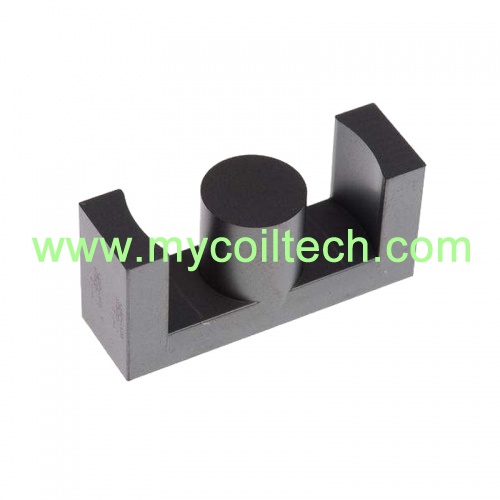

High Frequency Ferrite Core ETD and EC Series Ferrite CoreETD and EC ferrite core coupling position is good,center column is circular,easy to winding and increase winding areas,used inlarge power small leakage inductance transformer. -

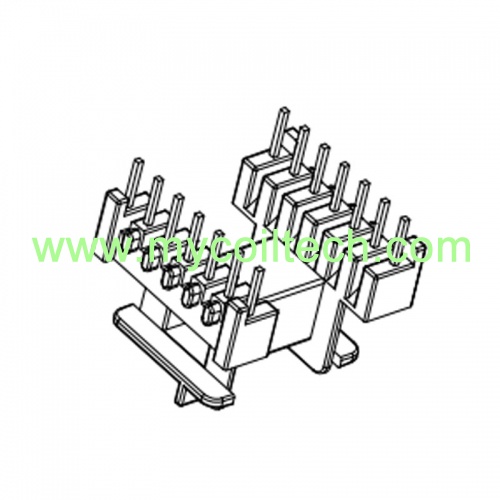

EE16 Horizontal Transformer Bobbin With 7+7 Pins Dip Bobbin6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=15.24mm Size=19.6mmX16.9mmX13.9mm -

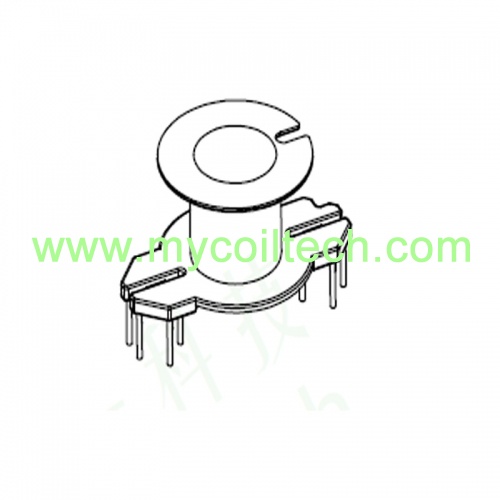

EF16 Vertical Transformer Bobbin 3+3 Pins3+3 pin EF16 transformer, vertical type coil bobbin. Size=13.1mmX11.6mmX13.5mm. Pin Pitch=3mm. Parallel Distance=9mm. -

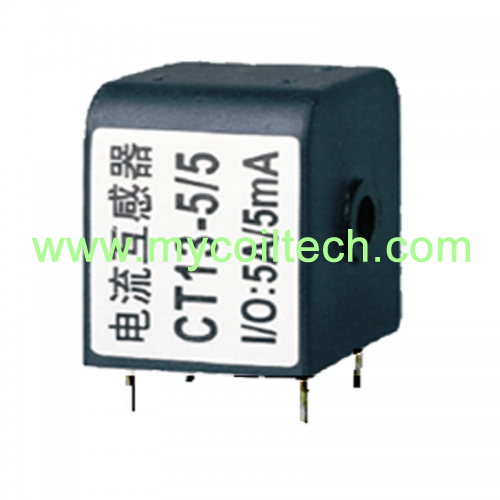

5A Magnetic Core Current Transformer for Monitoring MeterCurrent transformer has small size and easy to installation. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact. Good linearity. -

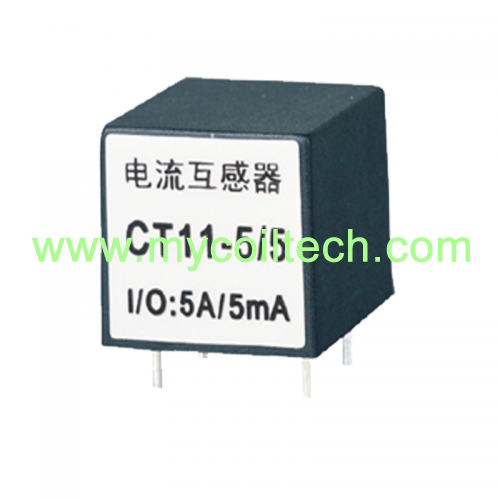

Rated Input Current 5A Current Transformer for PCB Mounting5A Current transformer has small size, good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact.
-
Precision Current Transformer with Vertical Transformer BobbinPrecision Current transformer with 5A has good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact. -

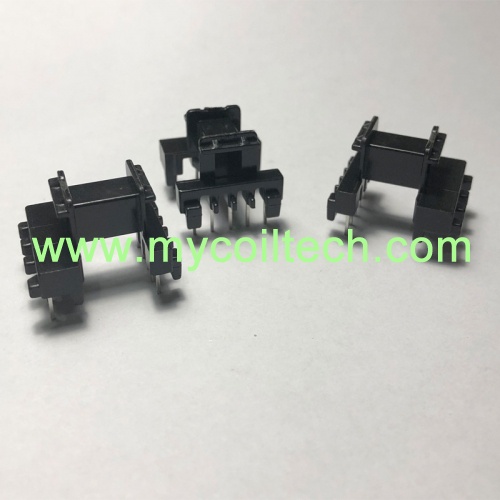

EF16 Horizontal High Frequency Transformer 5+4 Pin Bobbin5+4 Pins Horizontal Bobbin, Phenolic Material, Dip bobbin, SMPS transformer bobbin. Pin pitch1=3.5mm, pin pitch2=5mm. Parallel Distance=17mm, Size=19.6mmX23.6mmX14.8mm. We have bobbin tooling. -
Precision Electronically Compensated Current TransformerPrecision Current transformer with 5A has good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact. -
PCB Mounting Mini Precision Current TransformerMini Precision Current transformer has good linearity, easy to installation. Materials UL94-V0. Insulation Rating Class F (155OC). Power supply is needed when the operational amplifier is added to the transformer,e.g. ±15V，±12V or according to the actual operation. -

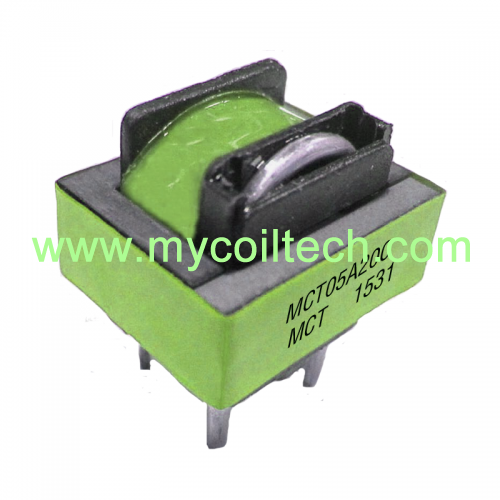

50A/10mA Lamination Core with Bobbin Current Transformer50A lamination current transformer mainly used in current measurements, power meter, current control circuit. Lsolated withstand voltage:3000V. Built-in busbar. -
Mini High Precision Current Transformer for PCB Mounting5A high precision current transformer materials UL94V-0. Insulation Rating Class F (155OC). Mainly used in current measurements, power meter, current control circuit. Lsolated withstand voltage:3000V. Built-in busbar. -
20A/5mA Micro Precision High Current TransformersHigh precision current transformer mainly used in current measurements, power meter, current control circuit. Materials UL94V-0. Insulation Rating Class F (155OC). Lsolated withstand voltage:3000V. Built-in busbar. -
50A Precision Miniature PCB Mount Current TransformerMicro precision current transformer materials UL94V-0. Insulation Rating Class F (155OC). Isolated withstand voltage: 3000V. Built-in busbar. Mainly used in current measurements, power meter, current control circuit. -
EF16 Horizontal Transformer Phenolic Bobbin With 4+4 Pin4+4 pins horizontal bobbin, high power transformer manufacture. Pin Pitch=3.8mm Parallel Distance=17.8mm. Bobbin Size=21.6mmX17.8mmX11.05mm. Phenolic material transformer bobbin,UL REC:94V-0 -

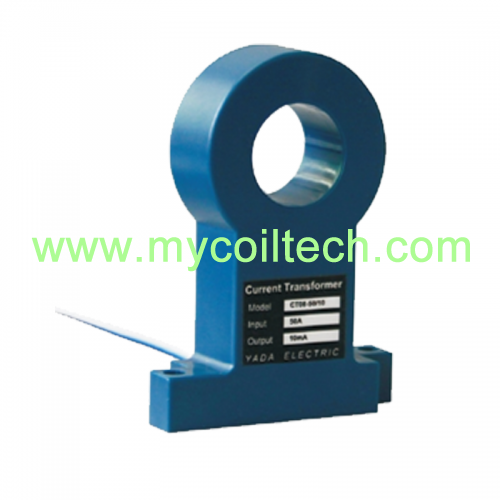

Rated Input Current 5A Current Transformer for PCB MountPrecision current transformer output 10mA. Insulation Rating Class F (155OC). Threading aperture Φ20. Lsolated withstand voltage:3000V. Built-in busbar. Mainly used in current measurements, power meter,current control circuit. Materials UL94V-0. -
High Precision Current Transformers for Power SupplyHigh precision current transformer. High permeability permalloy core. Epoxy potting. Excellent linear performance. Well-insulation. Insulation Rating Class F (155OC).Threading aperture Φ20. Lsolated withstand voltage:3000V. Built-in busbar. Mainly used in current measurements, power meter,current control circuit. Materials UL94V-0. -
High Precision Current Transformers Current Ratio 1000:1 for PCB Mount20A precision current transformer. High temperature and corrosion for 50/60Hz. Epoxy risen-perfect isolation and resistance to strong impact. Offer a plug in solution for PCB mounting. High permeability permalloy core. -
EL16 Mn-Zn Ferrite Core Transformer Bobbin4+6 pins vertical EL16 bobbin, high frequency EL16 bobbin. Bobbin Size=18mmx16.2mmx26.2mm. Pin Pitch=3.5mm. Parallel Distance=12mm. Phenolic material EL16 former. UL REC:94V-0 -

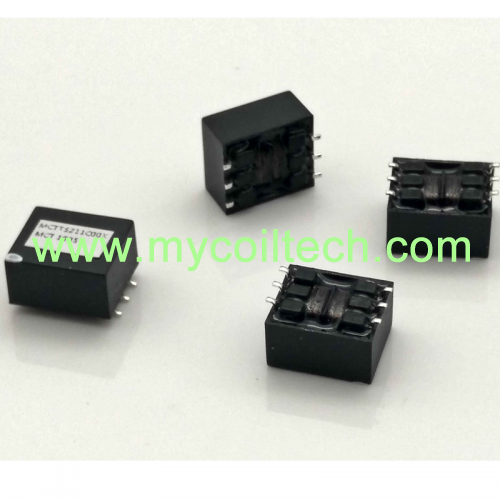

High Frequency Matching Transformer for Switching Power SuppliesHigh Frequency Electronic Matching Transformers are intended for measuring electric signal voltages or currents which contain useful data. They match the signal source with the load ensuring the minimum signal distortion. Along with active components (such as transistors and lamps) they are included into devices amplifying electric oscillations that work within a wide frequency band. -
RM10 Electronic Transformer Clamps with No Pin RM ClipsNO Pin RM10 Transformer Iron Clips,UL REC:94V-0 Clips Material: SK7 0.4T E Size=17mmX5.0mmX4.6mm -
Electronic Transformer Clamps SKT 0.4T RM10 Transformer ClipsRM10 Electronic Transformer Iron Clips,UL REC:94V-0 Clips Material: SK7 0.4T E Size=17.5mmX4.8mmX4.5mm -

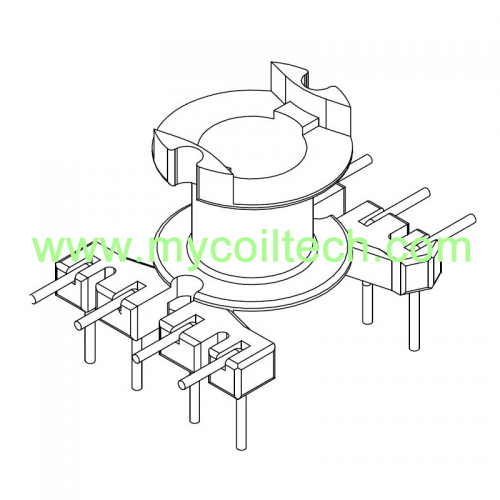

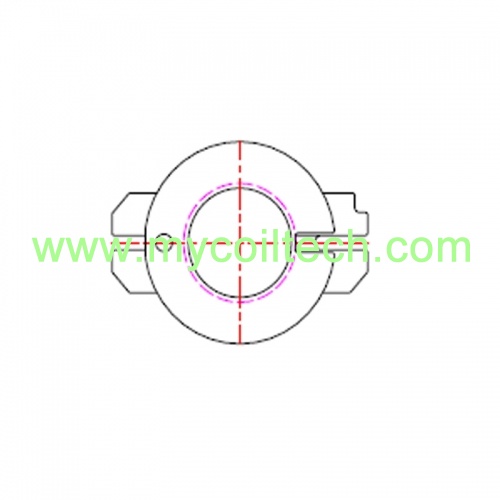

Vertical High Frequency Transformer Bobbin 6+6 Pins RM10 BobbinRM10 high frequency transformer bobbin, 6+6 Pins Vertical Bobbin, DIP Bobbin, Phenolic Bobbin, UL REC:94V-0 Bobbin Size=36mmX24.6mmX17.65mm -
RM10 Bobbin for Switching Power Transformer 6+6 Pins BobbinPower transformer bobbin, RM10 transformer bobbin, 6+6 Pins Vertical Electronic Transformer Bobbin DIP Bobbin, Phenolic Bobbin, UL REC:94V-0 -
Isolated and Line Matching Transformer Bobbin 6+6 Pins RM10 BobbinPower transformer bobbin, RM10 transformer bobbin, 6+6 Pins Vertical Electronic Transformer Bobbin DIP Bobbin, Phenolic Bobbin, UL REC:94V-0 -
RM10 Line Matching Transformer Bobbin 3+5 Pins Vertical Bobbin3+5 Pins RM10 power transformer bobbin, Vertical Electronic Transformer Bobbin, DIP Bobbin, Phenolic Bobbin, UL REC:94V-0 -

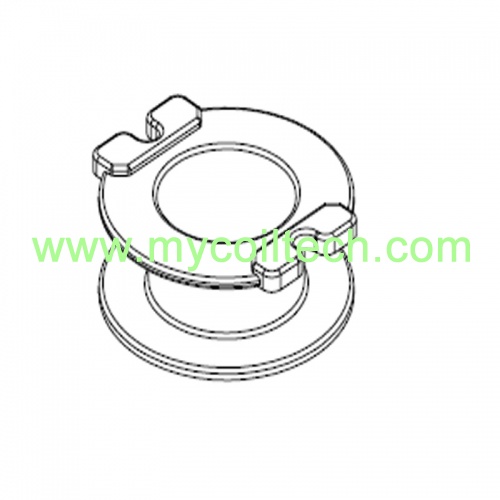

RM10 Electronic High Frequency Transformer Bobbin No Pins BobbinNo Pins RM10 high frequency transformer bobbin, Phenolic Electronic Transformer Bobbin,UL REC:94V-0 Customized designs are accepted.
